Electric charge is uniformly distributed along a long straight wire of radius 1 mm. The charge per cm length of the wire is Q coulomb. Another cylindrical surface of radius 50 cm and length 1 m symmetrically encloses the wire as shown in the figure. The total electric flux passing through the cylindrical surface is

$Q / \varepsilon_0$

Correct Answer

Wrong Answer

$100Q / \varepsilon_0$

Correct Answer

Wrong Answer

$10 Q / \pi \varepsilon_0$

Correct Answer

Wrong Answer

$100 Q / \pi \varepsilon_0$

Correct Answer

Wrong Answer

View Solution

NEET 2026: Exam Centres List | Free NEET Coaching & Study Material

NEET Prep: Mock Test | 10 Years PYQ's | Syllabus

NEET 2026: Boards Cheat Sheet | Mind Maps & Diagrams Guide | Formula Sheet

Latest: Allied and Health Sciences | Paramedical Universities Accepting Applications

Shown below is a distribution of charges. The flux of the electric field due to these charges through the surface S is

$3 q / \varepsilon_0$

Correct Answer

Wrong Answer

$2 q / \varepsilon_0$

Correct Answer

Wrong Answer

$q / \varepsilon_0$

Correct Answer

Wrong Answer

zero

Correct Answer

Wrong Answer

View Solution

If the electric flux entering and leaving an enclosed surface respectively is $\phi _{1}$ and $\phi _{2}$ , the electric charge inside the surface will be:

$\left ( \phi _{2}-\phi _{1} \right )\varepsilon _{0}$

Correct Answer

Wrong Answer

$\left ( \phi _{1}+\phi _{2} \right )/\varepsilon _{0}$

Correct Answer

Wrong Answer

$2$ $\left ( \phi _{2}-\phi _{1} \right )/\varepsilon _{0}$

Correct Answer

Wrong Answer

$2$ $\left ( \phi _{1}+\phi _{2} \right )/\varepsilon _{0}$

Correct Answer

Wrong Answer

View Solution

Let $P(r)=\frac{Q}{\pi R^{4}}r$ be the charge density distribution for a solid sphere of radius $R$ and total charge $Q$ . For a point $'p'$ inside the sphere at a distance $r_{1}$ from the centre of the sphere, the magnitude of the electric field is

Correct Answer

Wrong Answer

$\frac{Q}{4\pi \varepsilon _{0}r_{1}^{2}}\; \;$

Correct Answer

Wrong Answer

$\; \frac{Qr_{1}^{2}}{4\pi \varepsilon _{0}R^{4}}\; \; \;$

Correct Answer

Wrong Answer

$\; \frac{Qr_{1}^{2}}{3\pi \varepsilon _{0}R^{4}}\;$

Correct Answer

Wrong Answer

View Solution

Let there be a spherically symmetric charge distribution with charge density varying as $\rho (r)=\rho _{0}\left ( \frac{5}{4}-\frac{r}{R} \right )\; upto\; r=R,and\; \rho (r)=0\; for\; r> R,$ where $r$ is the distance from the origin. The electric field at a distance $r(r< R)$ from the origin is given by

$\frac{\rho _{0}r}{3\varepsilon _{0}}\left ( \frac{5}{4}-\frac{r}{R} \right )$

Correct Answer

Wrong Answer

$\frac{4\pi \rho _{0}r}{3\varepsilon _{0}}\left ( \frac{5}{3}-\frac{r}{R} \right )$

Correct Answer

Wrong Answer

$\frac{\rho _{0}r}{4\varepsilon _{0}}\left ( \frac{5}{3}-\frac{r}{R} \right )$

Correct Answer

Wrong Answer

$\frac{4\rho _{0}r}{3\varepsilon _{0}}\left ( \frac{5}{4}-\frac{r}{R} \right )$

Correct Answer

Wrong Answer

View Solution

Virohan Allied & Healthcare Programs

Allied & Healthcare programs | 20+ Partner Universities & Institutes | 98% placement record

Apply

$q_1, q_2, q_3, q_4$ are point charges located at points as shown in the figure and s is a spherical Gaussian surface of radius $R$. Which of the following is true according to Gauss's law

$\int_s\left(\vec{E}_1+\vec{E}_2+\vec{E}_3\right) d \vec{A}=\frac{q_1+q_2+q_3}{2 \varepsilon_0}$

Correct Answer

Wrong Answer

$\int_s\left(\vec{E}_1+\vec{E}_2+\vec{E}_3\right) d \vec{A}=\frac{q_1+q_2+q_3}{ \varepsilon_0}$

Correct Answer

Wrong Answer

$\int_s\left(\vec{E}_1+\vec{E}_2+\vec{E}_3\right) d \vec{A}=\frac{q_1+q_2+q_3+q_4}{\varepsilon_0}$

Correct Answer

Wrong Answer

None of the above

Correct Answer

Wrong Answer

View Solution

A charge Q is enclosed by a Gaussian spherical surface of radius R. If the radius is doubled, then the outward electric flux will

increase four times

Correct Answer

Wrong Answer

be reduced to half

Correct Answer

Wrong Answer

remain the same

Correct Answer

Wrong Answer

be doubled

Correct Answer

Wrong Answer

View Solution

NEET 2026 Free Mock Test with Solutions

Download the NEET 2026 Free Mock Test PDF with detailed solutions. Practice real exam-style questions, analyze your performance, and enhance your preparation.

Download EBook

Concepts Covered - 1

Electric flux through cone or disc

Electric flux through cone or disc-

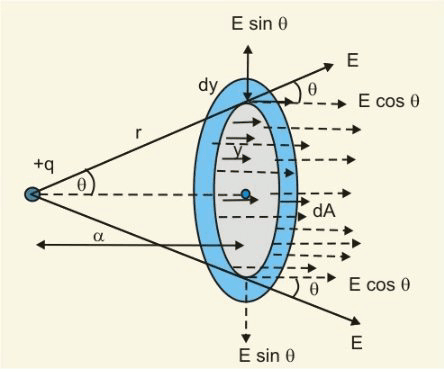

There are several case for electric flux calculation. In this concept we will discuss one very important and complex case which is ''Electric flux through cone or disc''. For this let us consider a point charge at a distance 'a' from a disc of radius R as shown in the given figure.

Let us consider an elemental ring of radius "y" and width "dy". Area of this ring(strip) is $d A=2 \pi y d y$.

Electric field due to $q$ at this elemental ring,

$
E=\frac{1}{4 \pi \varepsilon_0} \frac{q}{\left(a^2+y^2\right)}
$

If $d \phi$ is the flux passing through this elemental ring, we have

$
\begin{aligned}
d \phi & =E d A \cos \theta \\
& =\left(\frac{1}{4 \pi \varepsilon_0} \cdot \frac{q}{\left(a^2+y^2\right)}\right)(2 \pi y d y)\left(\frac{a}{\left(a^2+y^2\right)^{1 / 2}}\right) \\
& =\frac{q a}{2 \varepsilon_0} \cdot\left(\frac{y d y}{\left(a^2+y^2\right)^{3 / 2}}\right)
\end{aligned}
$

To obtain total flux, we should integrate this expression over the whole area of the ring, So the total flux is can be given as -

$
\phi=\int d \phi=\frac{q a}{2 \varepsilon_0} \int_0^R \frac{y d y}{\left(a^2+y^2\right)^{3 / 2}}
$

On integration we get,

$
\phi=\frac{q}{2 \varepsilon_0}\left(1-\frac{a}{\sqrt{a^2+R^2}}\right)
$
