Diagrams can be mastered so that students can achieve easy marks with less effort. Neatly labelled diagrams not only reinforce memory but also help students in understanding and remembering information more clearly during the exam. Through constant practice and smart preparation, even complicated diagrams can be made simple and increase overall NEET Biology scores.

NEET Biology Important Diagrams Of NCERT Botany and Zoology Class 11 and 12

A collection of all diagrams from NCERT Biology classes 11 and 12 can help candidates prepare correctly for the NEET 2025 exam. Each class 11 and 12 Biology cover important diagrams in Botany and Zoology. Each chapter has several diagrams, which can be key to knowing the concept. Applicants have to refer to the complete list of all of the NEET Biology diagrams organised for students here.

Those diagrams are essential for visualising and grasping complicated ideas in Biology. Human anatomy diagrams are very important as the zoology questions are largely diagram-based. They result in higher memory retention and are regularly seen in tests. Make sure to practice and understand each diagram very well to strengthen your understanding of the situation. Applicants can see the NEET botany and zoology diagrams right here.

NEET Biology Important Diagrams For Class 11 Botany

Since Botany could be very crucial for NEET, studying the critical diagrams for NEET class 11 Botany is important. The study of plants involves many complicated systems that are less difficult to understand via visuals. The NCERT textbooks for biology comprise many helpful diagrams that simply explain these ideas. By getting to know these diagrams, you could enhance your understanding of botany and boost your chance of success in NEET. The chapters of botany part of the NEET Biology include:

1. The Living World

2. Biological Classification

3. Plant Kingdom

4. Morphology of Flowering Plants

5. Anatomy of Flowering Plants

6. Cell: The Unit of Life

7. Cell Cycle and Cell Division

Some of the important diagrams of botany chapters include:-

These are some of the different modifications of the stem as seen in Plants with their examples.

The diagram shows different types of leaf venation seen in the leaves of different plants.

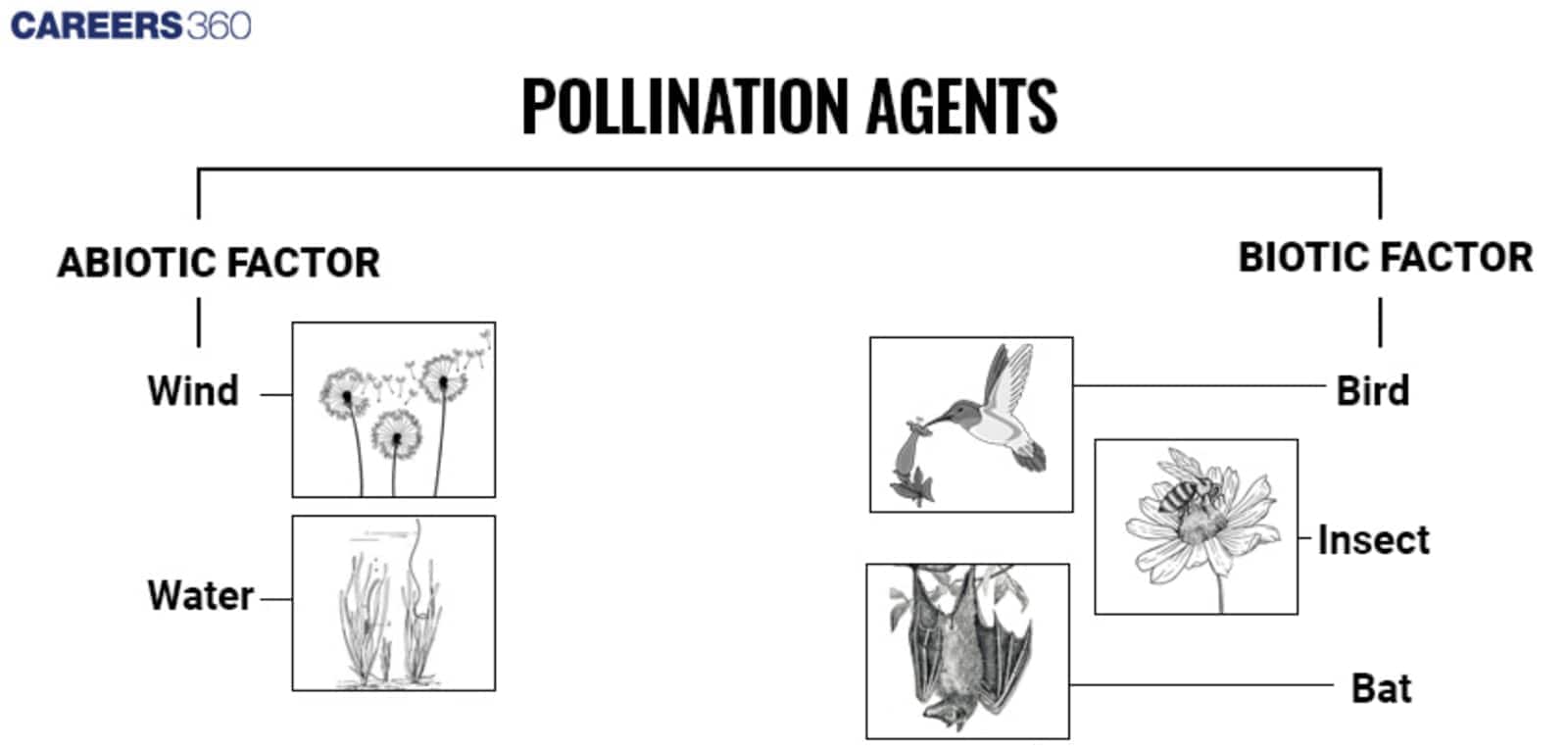

The diagram shows certain types of pollination agents, divided into biotic and abiotic agents.

The plant transport diagram shown above shows the water transport from roots to leaves and the transport of food solutes from leaves to roots.

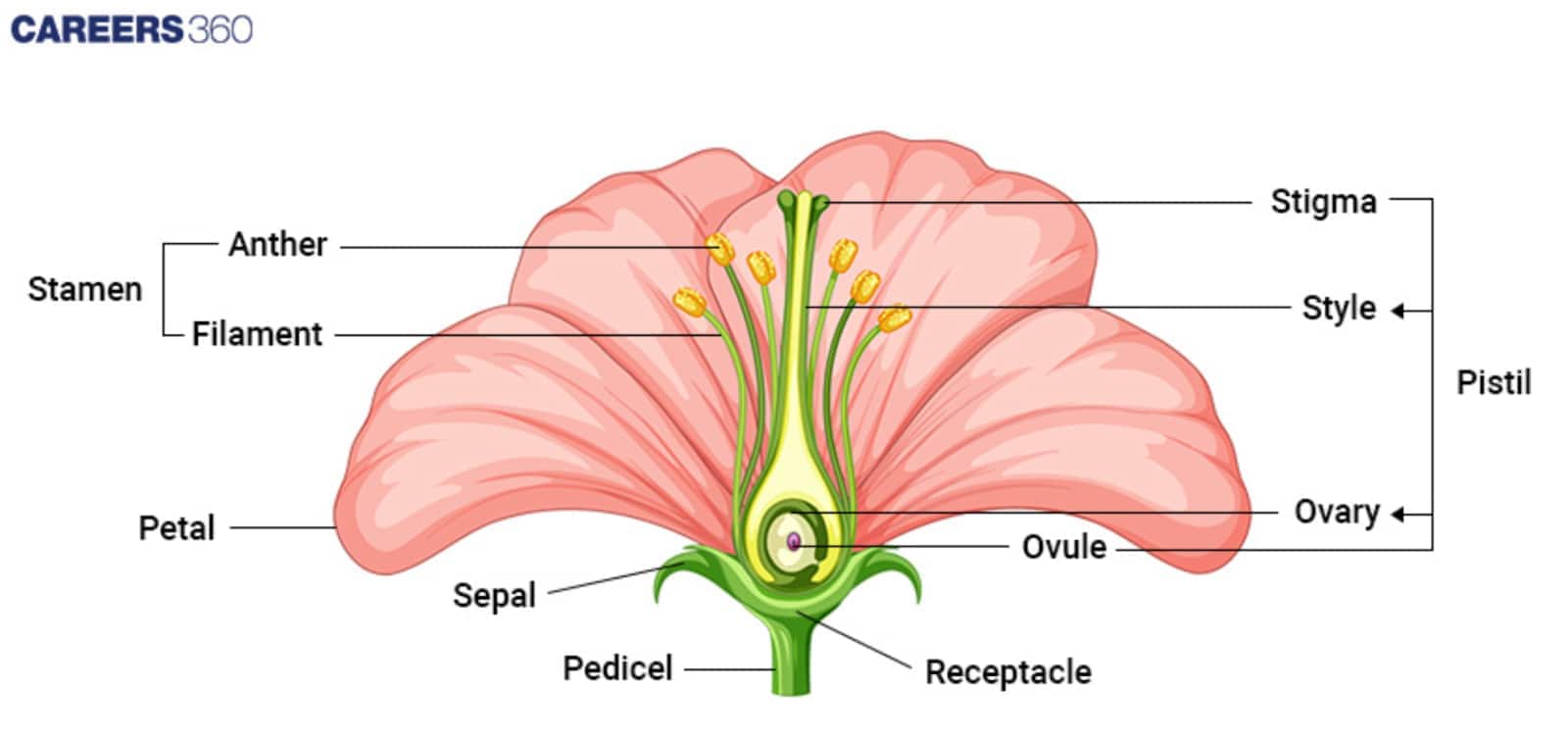

The diagram shows the different parts of a flower. Petals, sepals, and male and female reproductive parts are shown here.

The following shows the mitosis and meiosis diagrams that happen in living cells.

The above diagram shows the different steps of cell division that happen in somatic cells, known as mitosis.

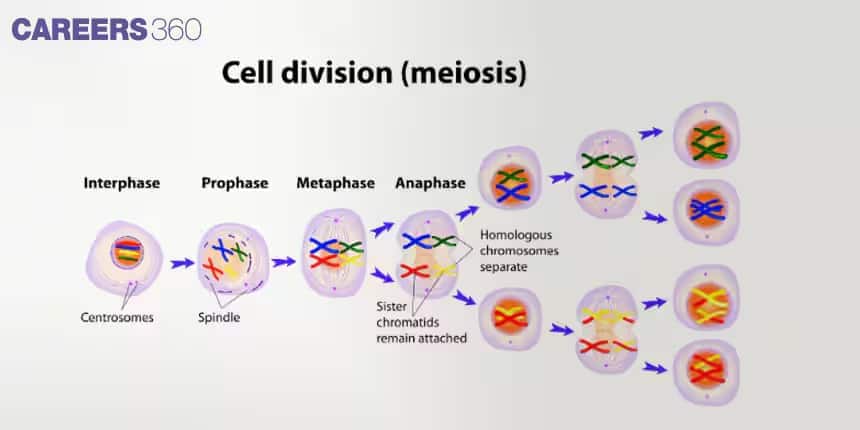

The above diagram shows the different steps of cell division that happen in reproductive cells, known as meiosis.

The following shows some of the Cell organelles illustrations.

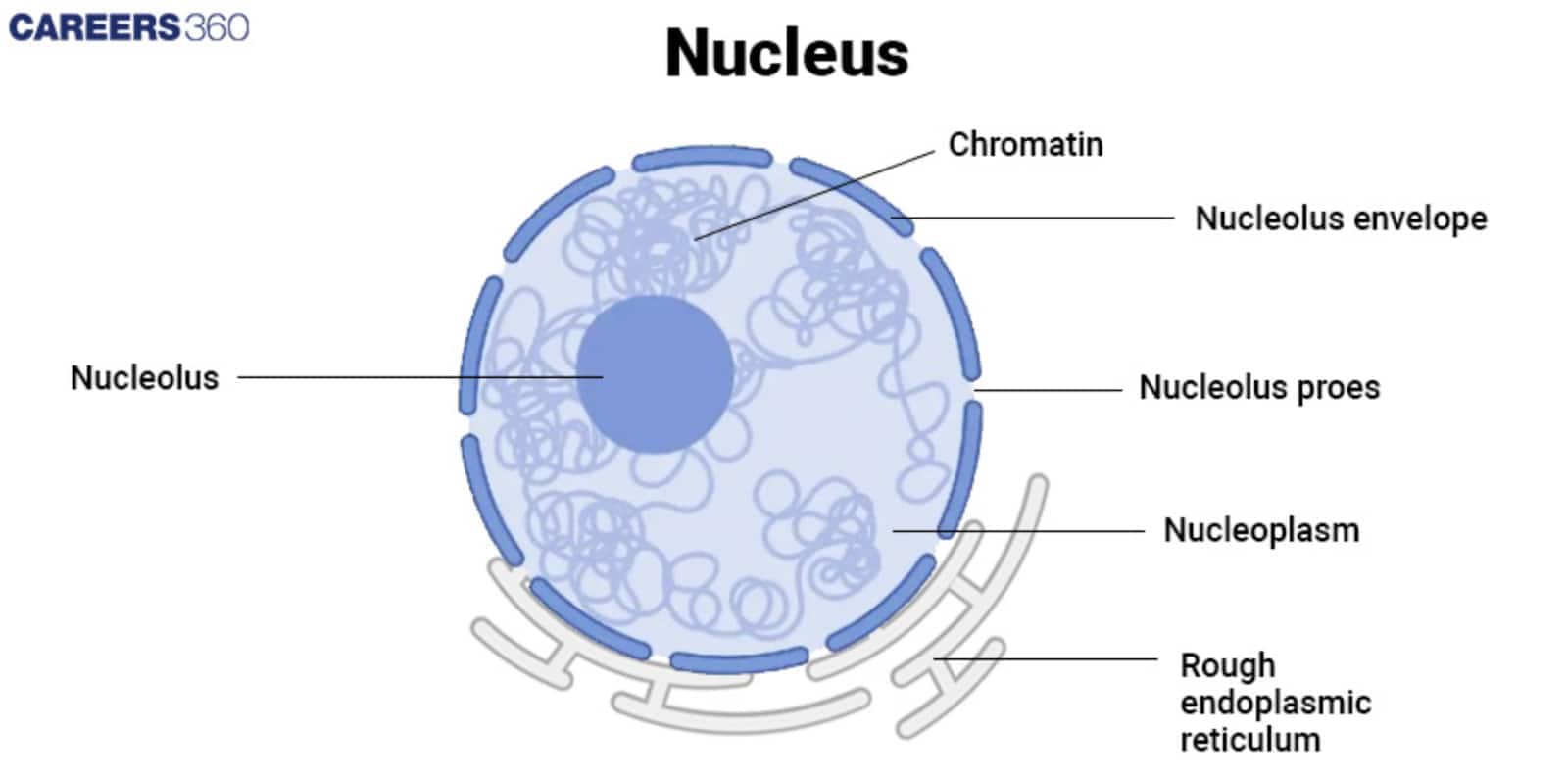

The diagram above shows the different parts of the control centre of the cell- the nucleus.

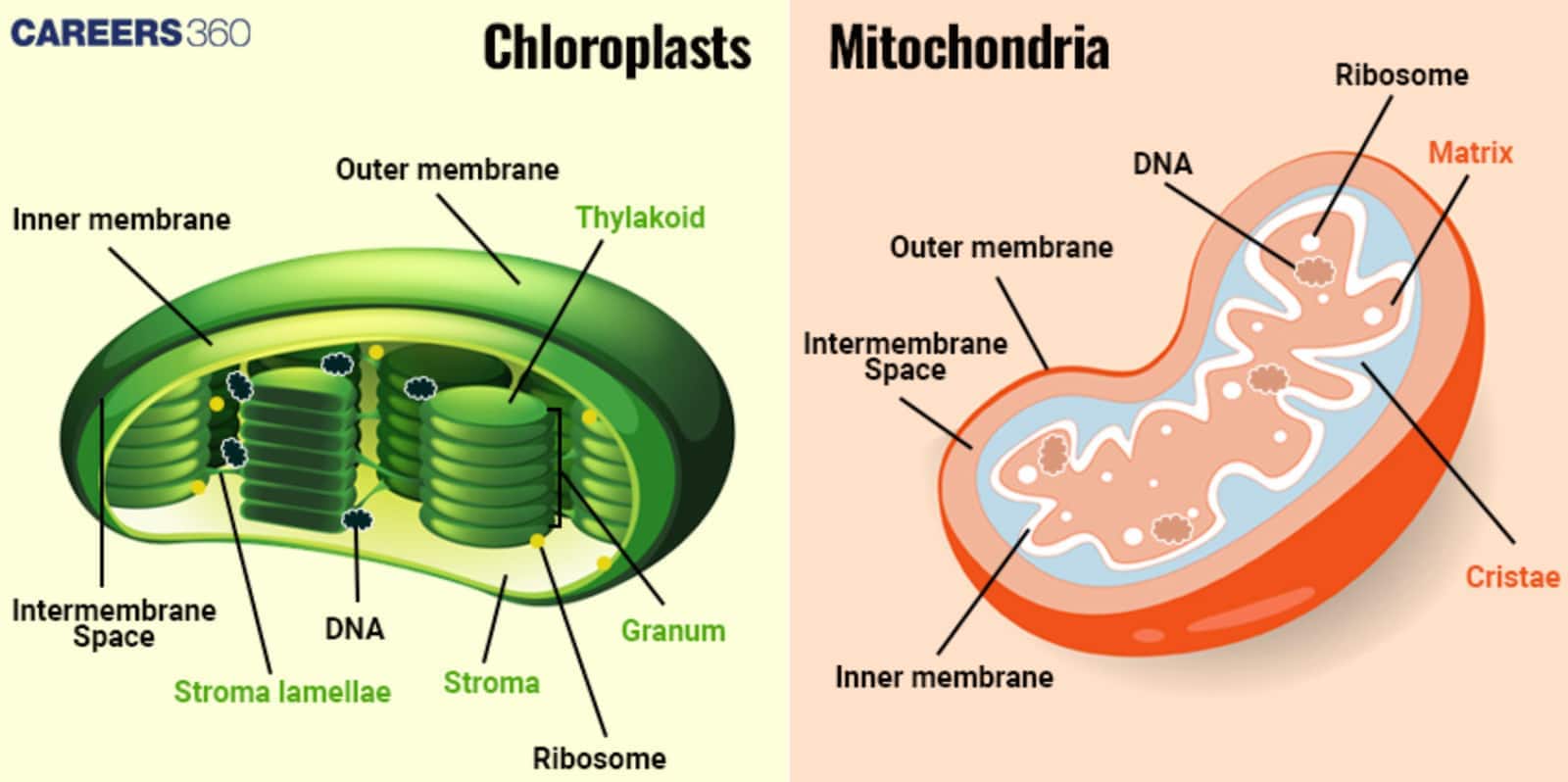

The diagram above shows the labelled diagram of the chloroplast and mitochondria. Chloroplast is present only in the plant cells and helps in photosynthesis, and mitochondria is present in both plant and animal cells and is known as the “powerhouse of the cell”.

Also Read:

• Best Biology Books for NEET 2025

• NEET Botany Mock Test

• NEET Botany Important Chapters

Important Diagrams For Class 11 Zoology

In NEET Biology, diagrams are vital for understanding and visualising complicated concepts. For Class 11 Zoology, diagrams are especially significant as they cover many key chapters important for the NEET exam. Diagrams in NEET Biology visually constitute theoretical concepts, facilitating better understanding and retention of data. In Zoology, diagrams encompass an extensive variety of topics, from structure to the functioning of diverse organ systems. Studying those diagrams is important for accomplishing the right exam results, as many questions are based on them. College students should exercise drawing diagrams time and again, appropriately label every part, and comprehend the underlying concepts to observe diagrams efficiently. This approach now not only aids in memorisation but also deepens understanding of the situation count number. The chapters covered in NEET for essential Diagrams for Zoology consist of:

1. The Living World

2. Animal Kingdom

3. Structural Organisation in Animals

4. Biomolecules

5. Breathing and Exchange of Gases

6. Digestion and Absorption

7. Body Fluids and Circulation

8. Excretory Products and Their Elimination

9. Locomotion and Movement

10. Neural Control and Coordination

11. Chemical Coordination and Integration

By concentrating on these chapters and their associated diagrams, students can enhance their understanding and improve their performance in NEET exams.

The diagram above shows the different kinds of bones present in the human skeletal system.

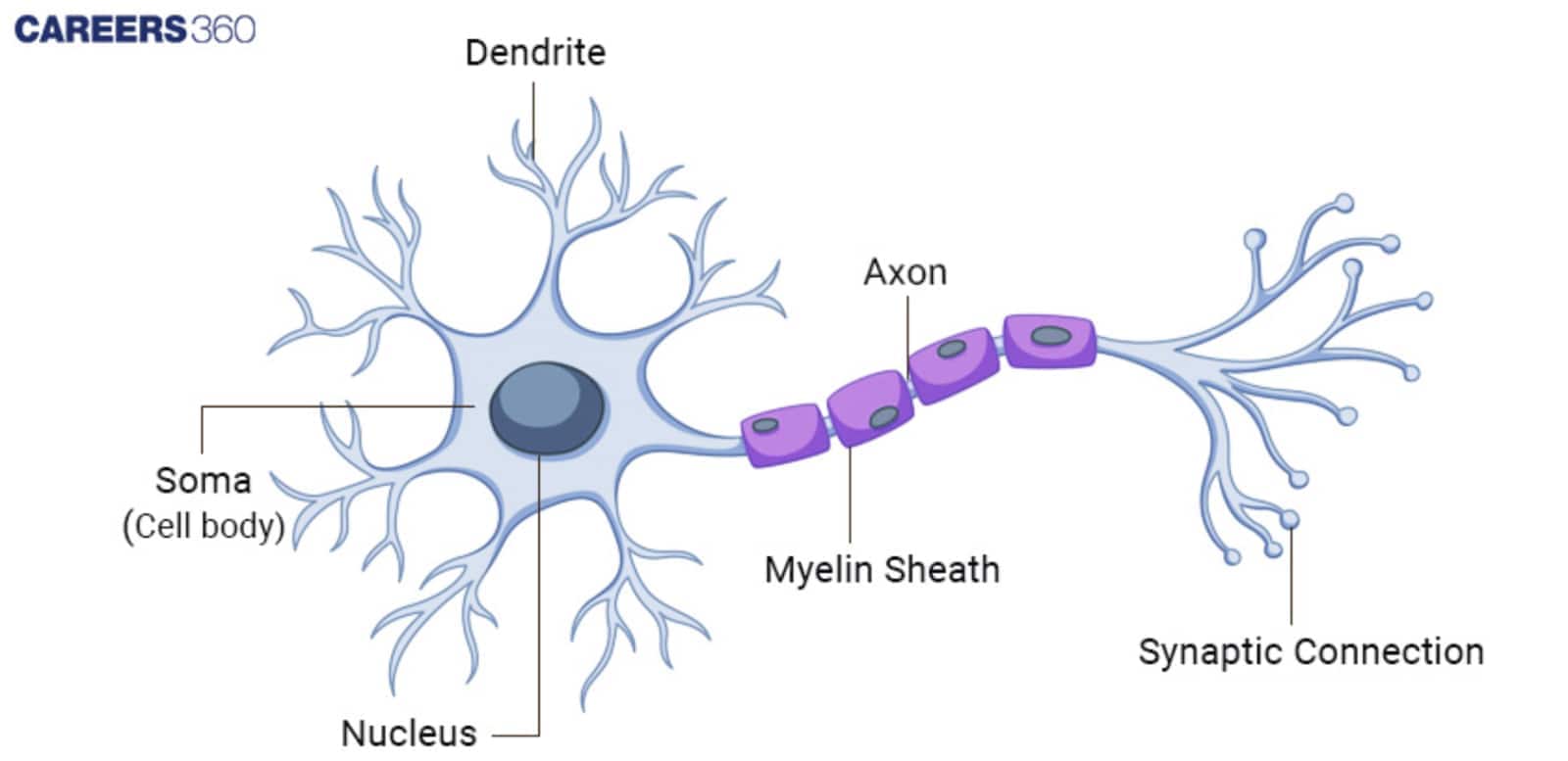

The above figure shows the nephron diagram found in the nervous system of humans.

The diagram shows the ball and socket joint found in the knee joint.

The above shows the respiratory system diagram found in the human body.

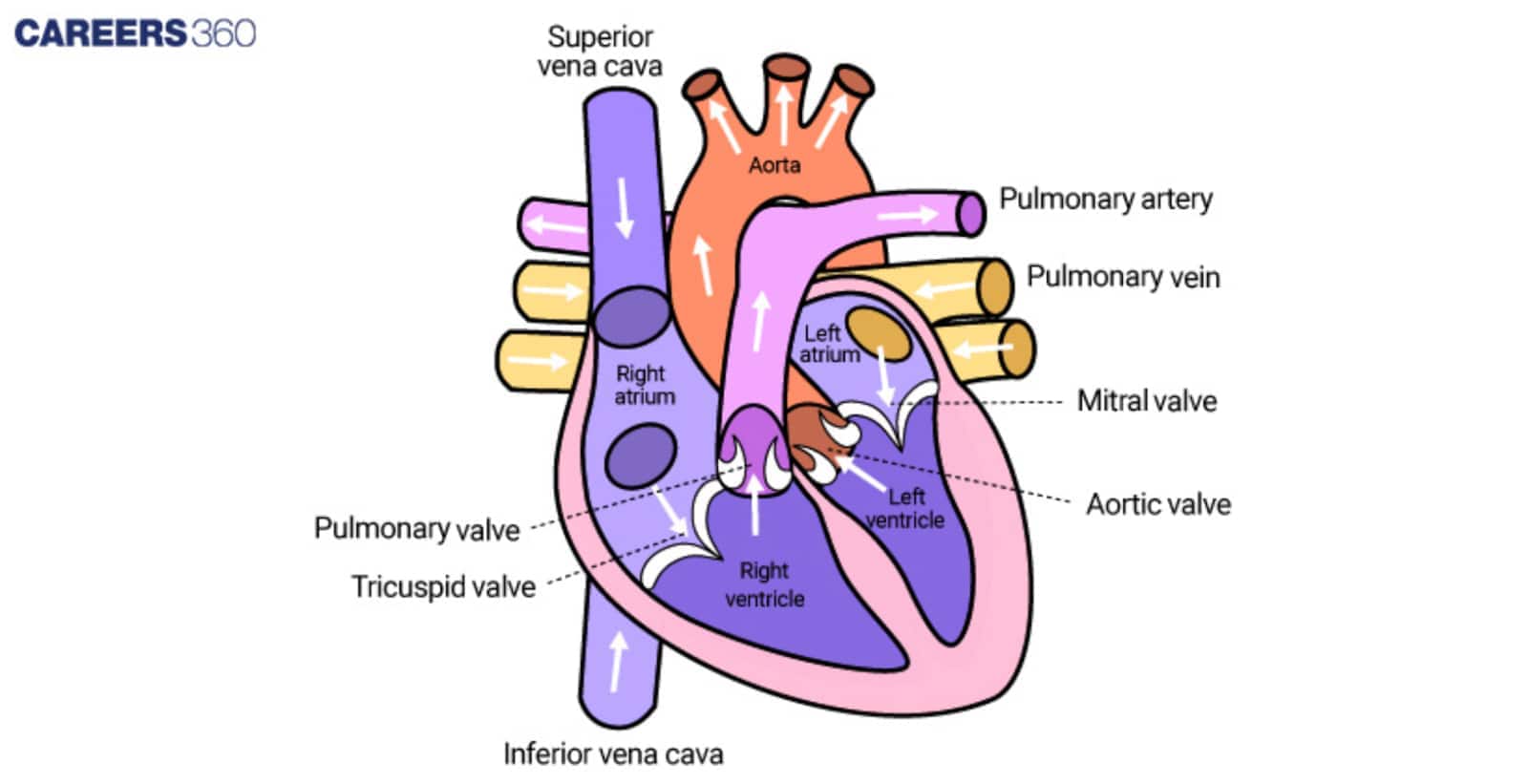

The diagram shows the structure of a well-labelled human heart. It is a part of the Human circulatory system.

The Digestive system diagram for NEET is shown above. A detailed as well as a simplified version. The colour-coded diagram shows where the absorption of the particular nutrient happens.

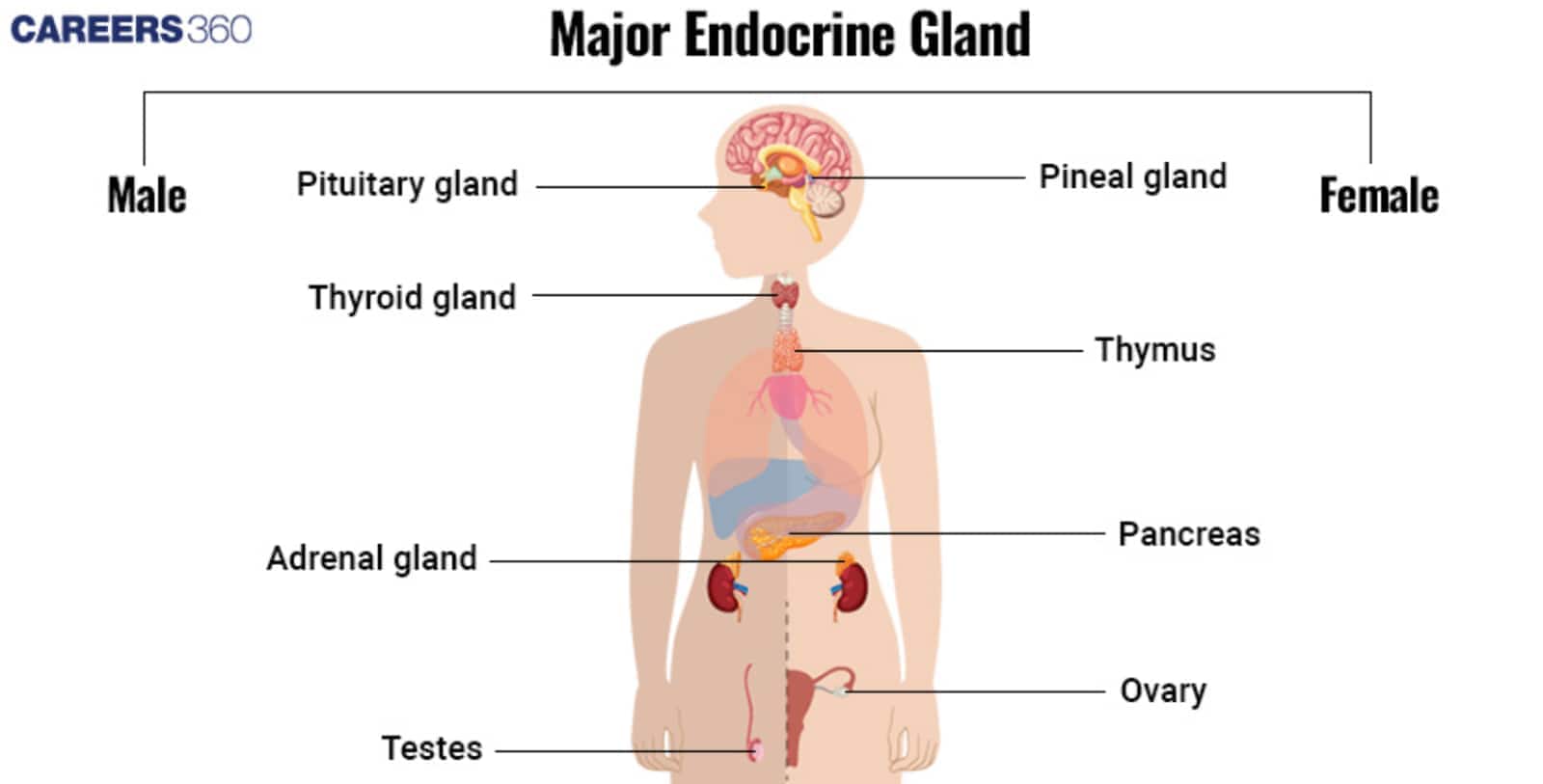

The diagram shows the major endocrine glands present in the human body.

Also Read: Biology Mind Maps For NEET 2025: Chapter-wise PDF (First 50K Free Downloads!)

Important Diagrams For Class 12 Botany

Botany is very important for NEET, as it covers a significant portion of the Biology section in the NEET exam. Studying the class 12 Botany diagrams for NEET is essential. Studying plants includes many complex systems, and the use of visuals makes them less difficult to recognise. The NCERT textbooks for class 11 and class 12 include many beneficial diagrams that explain those principles clearly. By gaining knowledge of these diagrams, you could improve your understanding of botany and boost your chances of achievement in NEET. The following are the important chapters in the class 12 Botany syllabus that include important diagrams for NEET class 12 Botany:

• Sexual Reproduction in Flowering Plants

• Biotechnology: Principles and Processes

• Biotechnology and its Applications

• Organisms and Populations

• Ecosystem

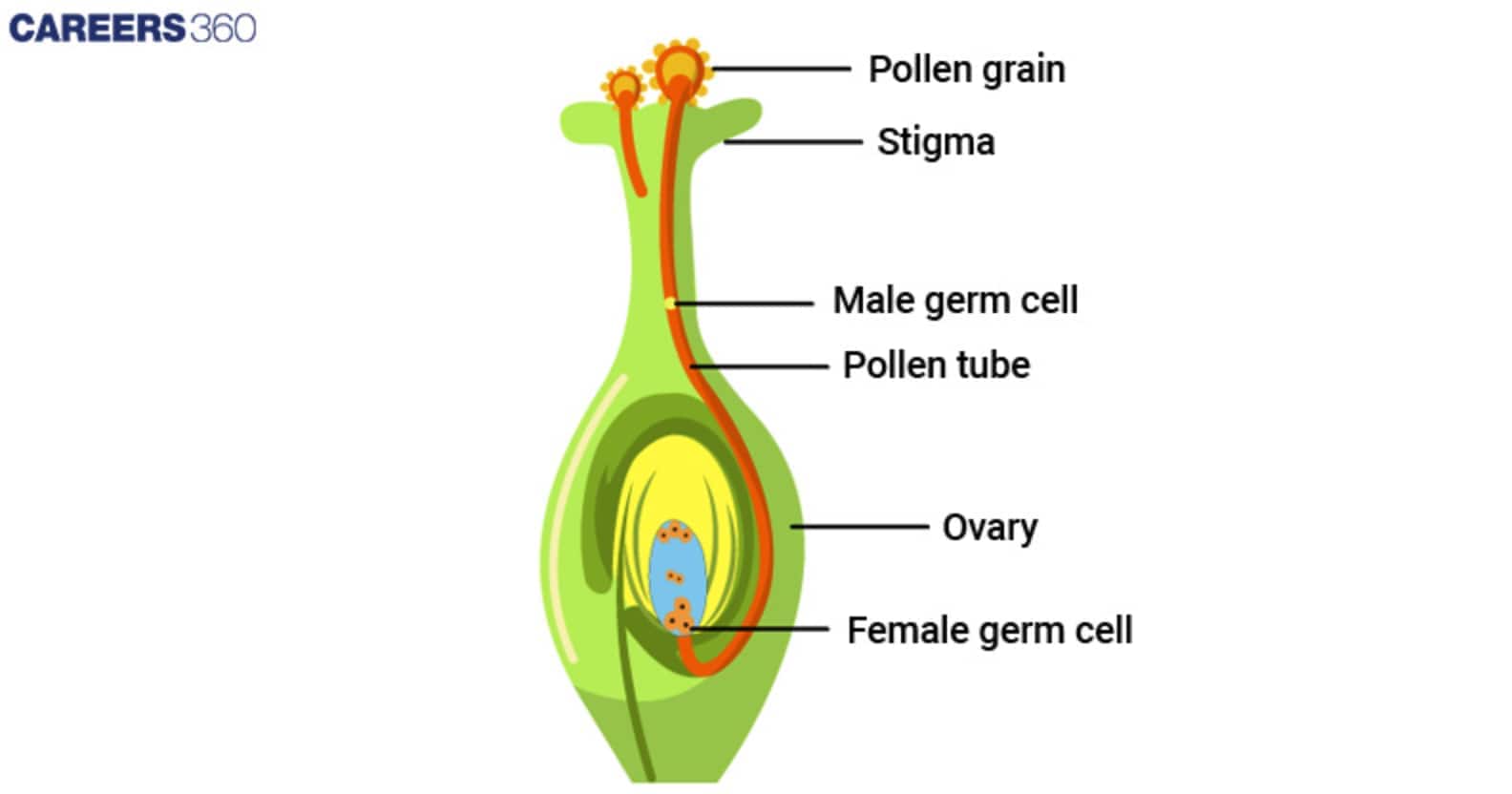

The diagram shows the growth of the pollen tube into the style of the stigma to get inside the megasporangium.

The diagram shows the use of enzymes and processes involved in the ligation of foreign DNA into the vector DNA.

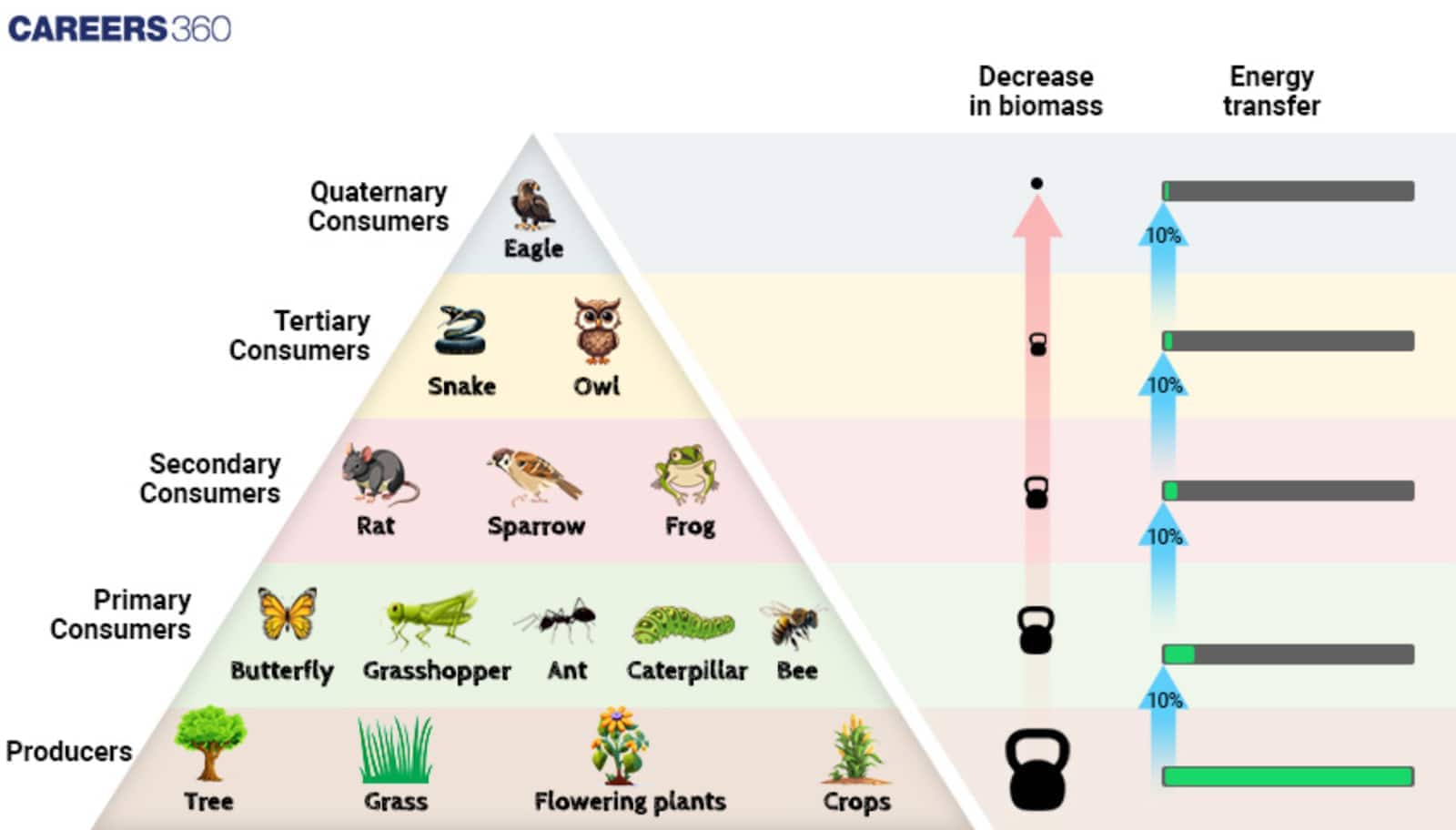

The diagram shows the ecological pyramid in biology and the change in its energy and biomass level with the various stages of the pyramid.

The diagram shows the simplified food chain that occurs in nature.

Also Read:

• NEET Preparation Tips 2025

• Best study Material for NEET 2025

• NEET Zoology Mock Test

Important Diagrams For Class 12 Zoology

While preparing for the NEET exam, information and studying diagrams in class 12 Zoology becomes vital. Class 12 Zoology contains fewer diagrams as compared to class 11. However, it still plays a significant function in enhancing conceptual readability. Diagrams are essentially visual representations that simplify complex organic methods and structures, making it easier for students to realise and retain records. For NEET aspirants, a thorough understanding of these diagrams is integral, as questions are regularly based on these visual aids. Therefore, focusing on NEET Zoology key diagrams from class 12 Zoology will provide students an edge in mastering the concern and performing well in the NEET examination. The following are the chapters in class 12 Zoology that encompass important diagrams:

1. Reproduction in Organisms

2. Human Reproduction

3. Reproductive Health

4. Principles of Inheritance and Variations

5. Molecular Basis of Inheritance

6. Human Health and Disease

7. Evolution

8. Microbes in Human Welfare

9. Biodiversity and Conversation

The diagram shows the asexual reproduction process called the binary fission seen in Amoeba.

The next two illustrations are the Human reproductive system diagram in Biology.

The diagram shows the male reproductive system.

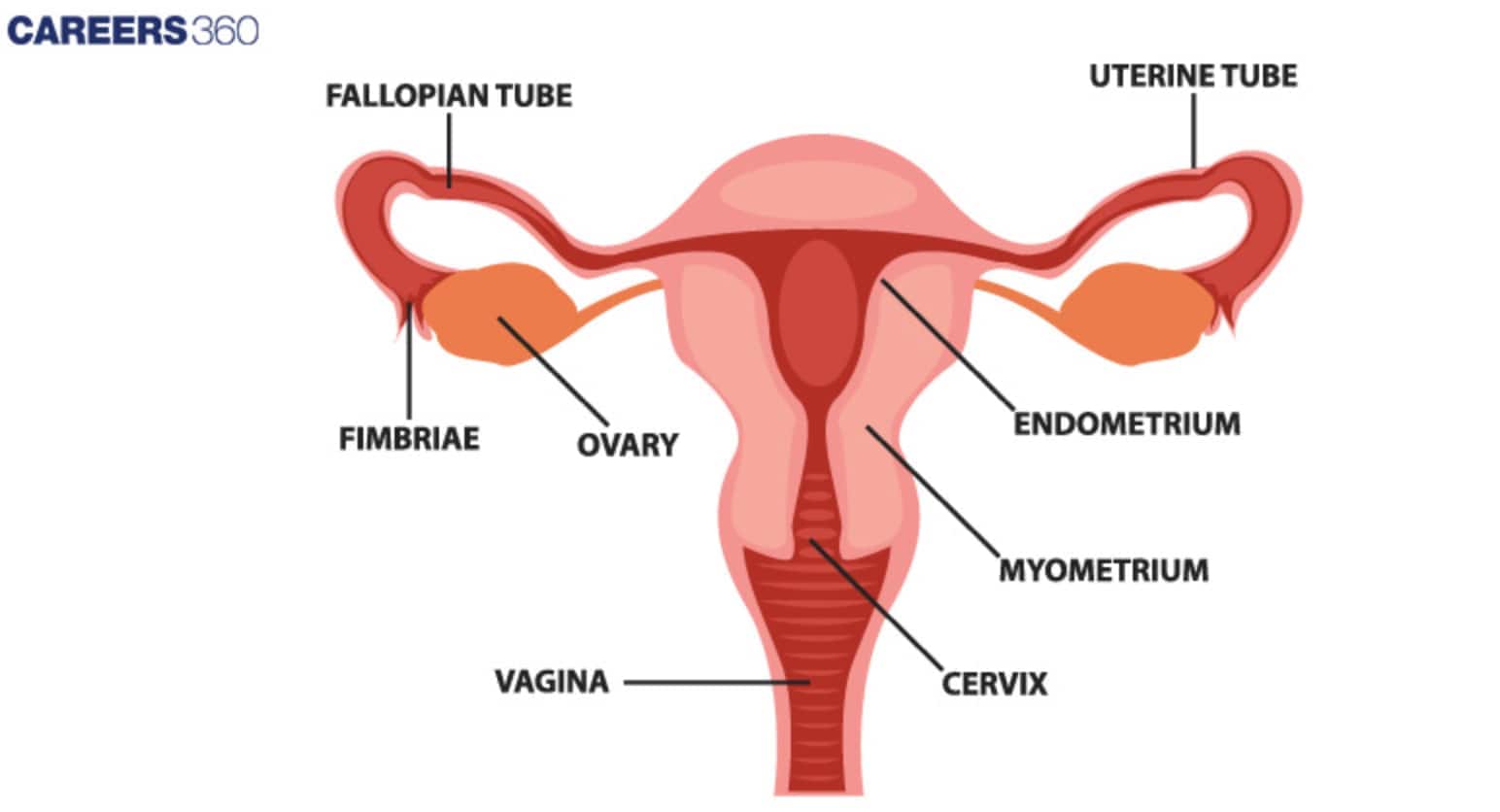

The diagram shows the simplified diagram of the female reproductive system.

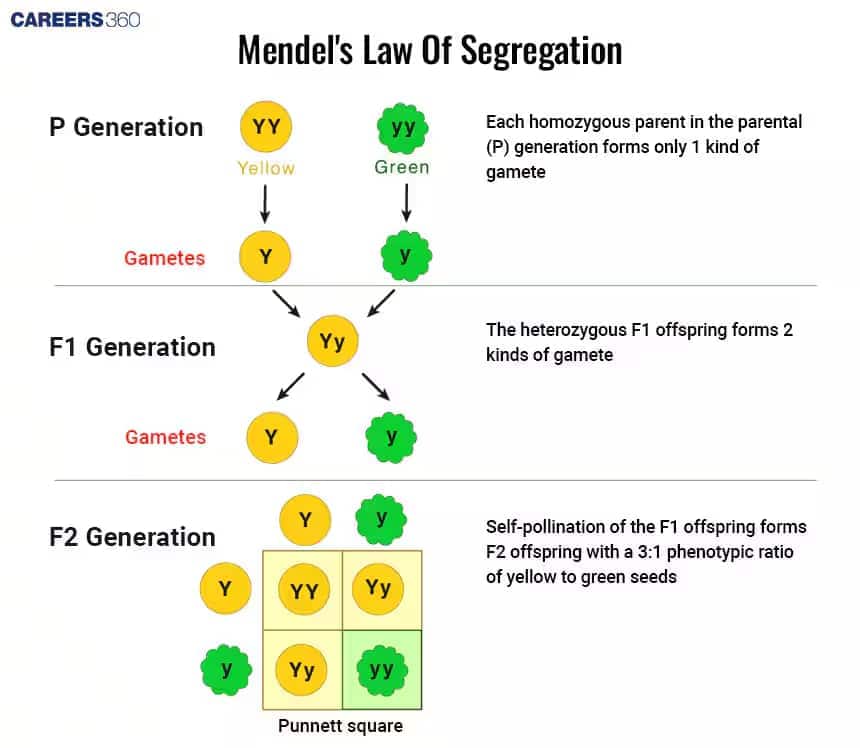

The diagram shows the Mendel’s Law of Segregation. It is a part of the Mendelian genetics and inheritance.

The diagram shows the central dogma of biology.

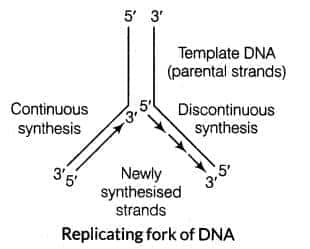

The diagram shows the basic replication process of DNA.
